|FEATURESAir handling units for efficient supply and exhaust ventilation in flats, houses, cottages and other buildings. Heat recovery is provided by the rotary heat exchanger and minimizes ventilation heat losses. Controllable air exchange for creating the best suitable indoor microclimate. Compatible with round Ø 160 and 200 mm air ducts. Additional spigot for kitchen hood air duct connection.

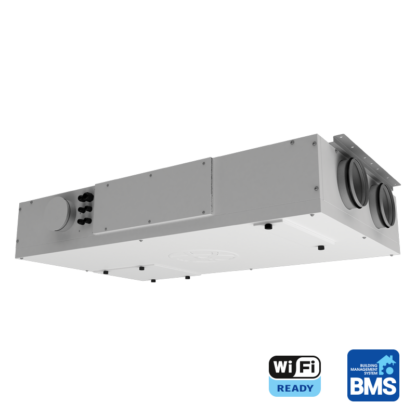

DESIGNThe fan casing is made of galvanized steel soundproofed on the inside with mineral wool. The spigots are located at the sides of the unit and are rubber sealed for airtight connection to the air ducts. KOMFORT Roto EC D(2) – model without electric heater. KOMFORT Roto EC D(2)E – model with electric heater. The insulation of KOMFORT Roto EC D(E) is 40 mm, for KOMFORT Roto EC D2(E) is 20 mm. Unit maintenance is performed from the bottom panel side. The distinctive feature of KOMFORT Roto EC D2(E) is a low casing profile.
MOTORSHigh-efficient external rotor EC motors and centrifugal impellers are used for air supply and exhaust. EC motors have the best power consumption to air flow ratio and meet the latest demands concerning energy saving and high-efficient ventilation. EC motors are featured with high performance, low noise level and totally controllable speed range. Dynamically balanced impellers.
MOUNTINGThe air handling unit is designed for wall, wand or floor mounting.
|KOMFORT ROTO EC D(E) L (LEFT SERVICE SIDE)|
|KITCHEN HOODAll the models are equipped with a fifth spigot for connection of the air duct from the kitchen hood.
ROTARY HEAT EXCHANGERThe unit has a high-efficient rotary aluminium heat exchanger. The rotary regenerator is a short, rotating cylinder, filled with corrugated aluminium sheet layers. The air streams flow through them. The band layers of the heat regenerator first come in contact with the supply and then with extract air flows. Therefore the band is alternatively warmed up and cooled down and the extract air heat and humidity are transferred to the cold intake air. This way heat recovery reduces heat losses in the cold season and reduces operation load for air conditioner in the warm season. The advantages of the rotary regenerator as compared to the plate heat exchangers include no condensate generation, maintaining comfort air humidity and high freeze resistance.
|AIR FILTRATIONTwo built-in filters with G4 and F7 filtration class provide efficient supply air filtration. Optionally, a H13 supply air filter may be used. The G4 filter is used for extract air filtration.
HEATERThe KOMFORT Roto EC D(2)E units are equipped with the electric heater. If the necessary temperature level of the supply air cannot be achieved through heat recovery, the heater turns on automatically and heats the air supplied to the premise. The heaters incorporate protective measures securing the safe unit operation.
CONTROL AND AUTOMATIONKOMFORT Roto EC D … S21 units are equipped with an integrated automation system. The remote control panel is not included in the delivery set (purchased separately). The S21 controller allows integrating the unit into the Smart Home system or BMS (Building Management System). The unit can be controlled via the Blauberg AHU mobile application via Wi-Fi.
S21-kontrolleren gjør det mulig å integrere enheten i Smart Home-systemet eller BMS (Building Management Systems).
Enheten kan styres av Blauberg AHU mobilapplikasjon via Wi-Fi.
